Issues Encountered While Running BCON

CMAQ CMAQ-PREP
1

Dear Sir/Madam,

I am encountering a series of issues when running BCON and have been unable to find a solution. I am writing to seek your assistance. The specific details are as follows:

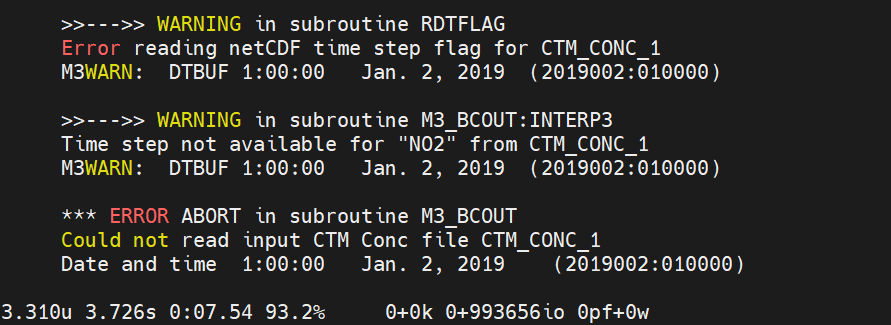

I have implemented a two-level nested domain with 54KM and 27KM resolutions. When running BCON for the second layer (27KM), I encountered the problem shown in the attached screenshot. I have searched for similar cases but failed to resolve it. Among them, I checked the CCTM_CONC file, which contains the NO2 variable.For your reference, I will attach my CCTM and BCON run scripts. Could you please help me identify the issue?

I sincerely appreciate your support and look forward to your guidance.

Thank you very much.

027b2f312d21508fd3ab2b7d67546d2
027b2f312d21508fd3ab2b7d67546d2891×325 14.4 KB

run_bcon.csh (5.7 KB)
run_cctm_Bench_2016_12SE1.csh (35.6 KB)

2

Hello @GuoXianhao ,

the error message shows that the time step BCON is trying to read from the 54 km domain CCTM_CONC file is not available in that file. This could be a scripting error in your BCON run script, but to help us diagnose it, you will need to post the full log file of the failed BCON run.

3

Dear Sir,
Thank you for your reply. Attached is the log file from my bcon run for your reference. I truly appreciate your assistance.
log file.txt (23.9 KB)

4

Thanks for posting the log file. This file shows that your met files have 1411 time steps but your CCTM_CONC file has only 25 time steps (which is typical for most CCTM run configurations) so BCON successfully writes out the 25 hours from 00:00 January 1 - 00:00 January 2 to /home/guoxh/output/CMAQ_data/bcon_data/201901YSUd02/BCON_v532_201901YSUd02_regrid_20190101 but then crashes when trying to go to 01:00 January 2 because that time step is not available in CCTM_CONC, as the error message shows.

To avoid running for more than the 25 hours available in the CCTM_CONC file for January 1, add the command setenv RUNLEN 250000 (or maybe setenv RUNLEN 240000, I don’t recall) to your run script, this should allow the program to complete without the crash at the end. Note that despite the crash at the end, the 25 hourly values written to /home/guoxh/output/CMAQ_data/bcon_data/201901YSUd02/BCON_v532_201901YSUd02_regrid_20190101 before the crash are perfectly fine.

To process January 2, change set DATE = "2019-01-01" to set DATE = "2019-01-02", or add some looping commands for the DATE variable (the script has a while loop for ju_curday and subsequent variables spin_year, spin_day, etc., but a) these variables are not used in any portions of the script and b) the loop isn’t closed).

6

Dear Sir，
Thank you for your suggestions. I’ve added a while loop to my second-layer BCON script, and now BCON runs smoothly with one output file per day. I’ve also made the same modifications to my all-layer ICON and BCON script. Thank you so much.

7

The BCON script needs the while loop over all days of your simulation. The ICON run script is typically only used for the first day of the spin-up period. All other initial condition files are from the previous day CGRID output.

Excerpt of the section setting up the use of initial condition files from the run_cctm_Bench_2018_12NE3.csh run script. Note, that NEW_START is equal to true for the first day of the simulation run, for all other days (else) the ICFILE is obtained from the previous day.

  #> Initial conditions
  if ($NEW_START == true || $NEW_START == TRUE ) then
     setenv ICFILE CCTM_ICON_${ICBC_LAB}_12NE3_20180701.nc
     setenv INIT_MEDC_1 notused
  else
     set ICpath = $OUTDIR
     setenv ICFILE CCTM_CGRID_${RUNID}_${YESTERDAY}.nc
     setenv INIT_MEDC_1 $ICpath/CCTM_MEDIA_CONC_${RUNID}_${YESTERDAY}.nc
  endif
